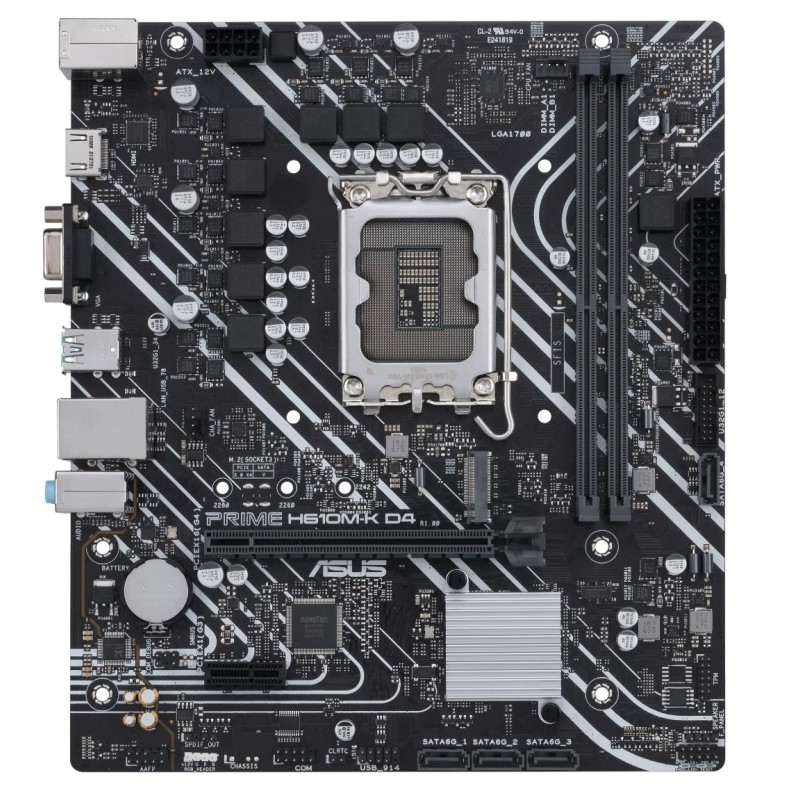

Placa Madre Asus PRIME H610M-K D4-CSM LGA 1700

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® H610 Chipset

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Intel® Core™ Processors (14th & 13th & 12th Gen)*

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

1 x Realtek 1Gb Ethernet

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port
